A performance feature

(1) The production line is capable of fully automatic production of honeycomb paper cores in one stop. The production process starts from high-strength corrugated paper to directly out the cut honeycomb paper core, and introduces foreign advanced technology to eliminate the paper cutter and docking machine required for traditional production of honeycomb paperboard. The biggest advantage of this line is high automation and low labor costs.
(2) Horizontal cutting, advanced structure and fast cutting speed.

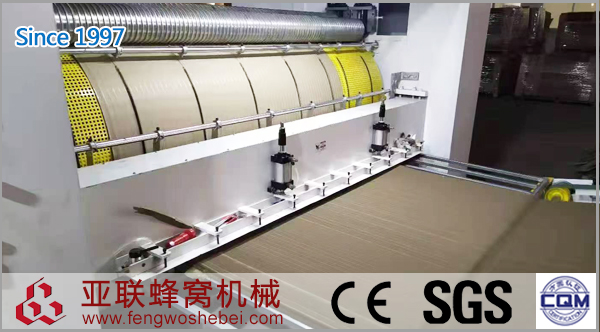

(3) Applying rubber with a toothed roller, the honeycomb aperture is evenly ruled (has applied for national invention patent)
(4) The production line has high degree of automation, advanced technology, low loss, and the yield of honeycomb paperboard reaches 98%.
(5) Full computer PC control, using advanced electrical design, collecting machine, electricity, gas, light, liquid in one, the calculator can touch screen operation. The workers are simple and convenient to operate, stable and reliable in performance, and are at the leading level in the domestic counterparts.
(6) From the raw paper into the cardboard, it is completed once on the fully automatic production line. The operator only needs 2 to 3 people, and the raw paper has high utilization rate and advanced technology.
 
The process flow is as follows:

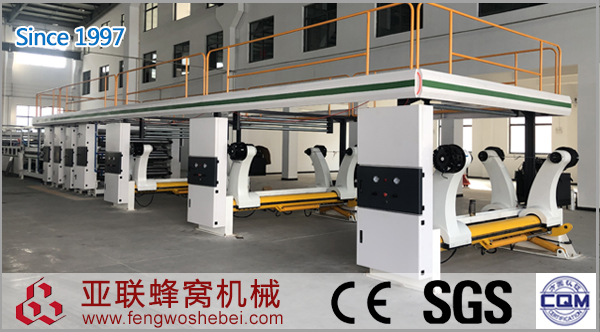

Multi-roll paper at the same time on paper → glue line → composite drying forming → cross cutting → automatic collection and docking
Three main technical parameters
Model: ZDFX-2000
The maximum width of the base paper: 2000mm
Maximum width of core material: 2000mm
Core width (after stretching): 1600mm
Core paper cross cutting speed: 550 times / minute
Gluing method: gear transfer coating / glue spraying system
Number of paper rolls: 6 rolls
Honeycomb core thickness: 6-100mm
Honeycomb side length: 6-40mm (customers choose two or four)
Power: 60KW
Cutting method: cross cutting
Production line size: 24000*4000*2500mm
Applicable paper: high strength corrugated paper (100-180g/m2)
Adhesive: white latex, starch glue, etc.
Total weight of equipment: 35T
