First, equipment characteristics

1. The production line adopts multi-stage interval ovens, which are repeatedly heated and cooled to achieve the effect of quickly drying honeycomb paperboard. This ensures that the machine can run at high speed. The bonding fastness and flatness of the honeycomb paperboard are very good.
2. The production line adopts PLC control and touch screen operation. The machine has a production record function, timely real-time paperboard output, user-friendly statistics
3. The glue coating mechanism can realize the surface paper coating or the core paper coating glue, and the machine can be used for both. The rubber amount is controlled by rubber roller, the glue amount is uniform and the precision is high, which can reduce the cost of glue.
4. This machine adopts servo motor drive and ball screw transmission for synchronous tracking and servo cutting to ensure the accuracy of cardboard cutting.
5. It is dust-free, tasteless, non-polluting and meets environmental protection requirements.
6. There is no intermediate link, the whole process is controlled, the labor force is greatly reduced, and the automatic production is realized.

Second, the honeycomb paperboard production process is as follows:

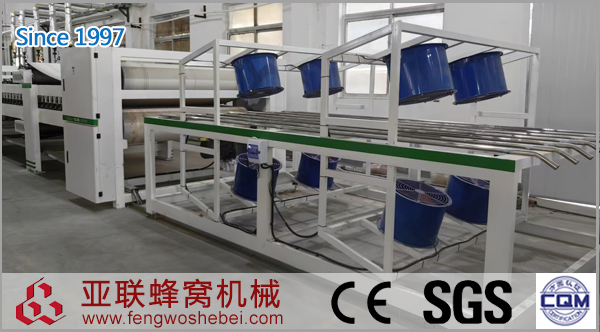

Multi-roll paper at the same time on paper → glue line → composite drying forming → cross cutting → automatic collection and butt → paper core stretching and drying → paper core coating or paper coating → face paper → paper composite → pressure Drying (electric heating or steam) → fan cooling → fixed length cutting → automatic collection of stacking code
Third, the specification parameters:
Machine model: ZDFB-1300
The maximum width of the paper core: 1600mm
The maximum width of facial tissue: 1300mm
Maximum width of cardboard: 1300mm
Cardboard thickness: 6-90mm
Production speed: 0-30m/min
Cardboard cutting accuracy: 1000±1.5mm
Heating method (optional): electric heating, steam heat, oil heating
Total power: 150 -180KW
Dimensions: 73000x4200x3500mm
Equipment weight: 60000KG
